HOME  >> VENTED>> ASPEN COAL BURNER IN ORNATE BASKET

 Gas Coal Basket Dealer

Old Salem Hearths Collection

ASPEN ROYAL SERIES
VENTED GAS COAL BURNER
IN ORNATE CAST IRON BASKET

The most advanced gas coal burner in the industry!

Email: Sales@CoalBaskets.com - Phone: 336 682 3241

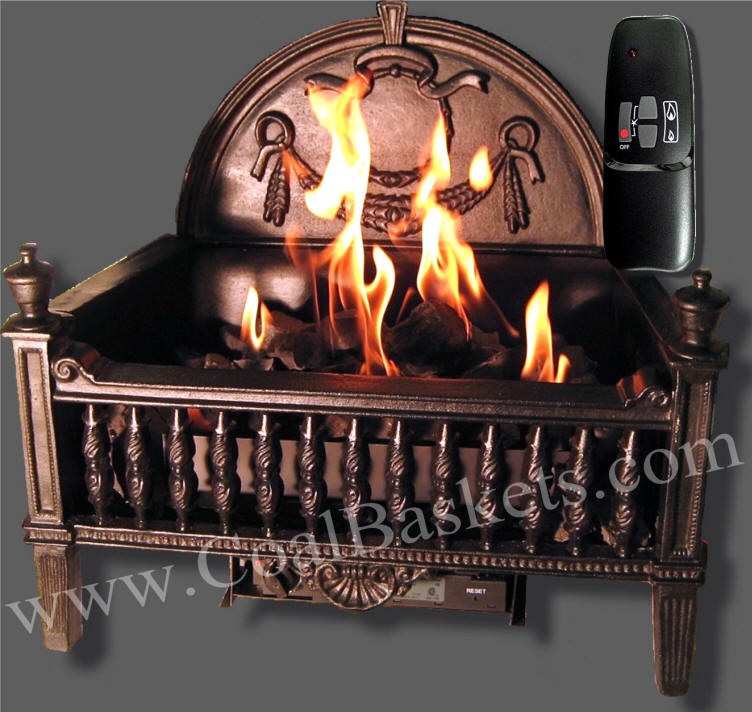

Aspen Gas Coal Burner in Ornate basket



Aspen EIR Vented Coal Baskets

Combining the latest technology with Old World Charm the Aspen Royal Victorian Burner is designed with an eye on both appearance and ease of operation.

This Aspen Royal Vented Coal  Basket is fitted with the latest gas control and flame management system. The electronic ignition and high-low flame control from the hand held remote translates into ease of operation and low gas consumption. This technology promises to be the future of all decorative gas appliances as energy conservation regulations take effect. The pilot does not need to be left burning all season and flame height can easily be adjusted for optimum effect with least gas consumption. The Aspen can be installed in any properly functioning wood burning fireplace.  They are installed as a vented gas log, with the damper locked open for safety to allow products of combustion to safely escape up the chimney.

The Aspen EIR burner include the burner, premium realistic individual ceramic fiber coal pieces, all gas valve and controls are factory assembled and tested. The variable remote control is included.

 Install in your basket or one of ours.

Please note not all Aspen burners sold elsewhere are equipped with the EIR (electronic ignition variable remote control system).

Install Manual Certification Product Flyer
Aspen Gas Coal Installation Manual
complies to
ANSI Z21.50b-/CGA 2.23-2000b		 Aspen Coal Basket Flyer


Before you order this product please review installation manual and consult local professional advise for compliance in your application.



BURNER  DIMENSIONS
Burner Front Width Back Width Front to Back Depth Burner Height Coal Height  BTU/hr
min - max 1
B 401-12 (EIR) 12" 10.50" 6" 7" 10" 19.000 28.500 2
B 401-14 (EIR) 14" 12..50" 6" 7" 10"

1 Variable BTU only available with the variable burner when equipped with (EIR) remote control
2 Maximum BTU is reduced to 21,500 BTU/hr on special order ZC models

MINIMUM FIREPLACE DIMENSIONS
 SEE HOW TO MEASURE YOUR FIREPLACE BELOW
A
Front Width		 B
Back Width		 C
Front to Back Depth		 D
Front Height		 E
Mantel Clearance
19" NA* 9 21" NA*
Fireplace clearance must be large enough for the basket chosen. See Size of basket
MINIMUM CLEARANCE TO COMBUSTIBLES
ON OUTSIDE OF FIREPLACE
Sides Top Hearth
NA* NA* NA*
* As a vented appliance clearances are not required by Aspen
BURNER & BASKET DIMENSIONS
Basket Front Width Back Width Front to Back Depth Front Height Back Height
Aspen Vented Electronic ignition flame control remote classic presidential Coal Grate from Old salem Collection 19" 14" 9.75"
 		 9.5" 13.5"
Aspen electronic ignition remote control in Ornate Basket 22" 18" 12.5" 10.5" 20.5"
Aspen electronic ignition remote control in Big Ornate Basket 26" 22" 13" 10.5" 20.5"



How to measure your fireplace for a gas coal basket

A - Front Width of  Fireplace
B - Back Width of Fireplace
C - Front to Back Depth
D - Front height of Fireplace
E -  Distance to Combustible   above permanent masonry opening.
F - Distance to nearest perpendicular wall
G - Hearth Projection to combustible flooring

COAL GRATE OPTIONS


Olde World Vented Coal Grate from Old salem Collection
CLASSIC ORNATE
